Accessories | LubriMatic

Grease Gun accessories

27 piece

accessory kit

05-065 Includes 20 assorted fittings.

Reusable box. Display pack. 6/master

INCLUDES

6" Flex Hose

Seal-Off Dispenser

Grease Gun Coupler

Air Bleeder Valve

Needle Nose Dispenser

Injector Needle

Grease Gun Coupler Cap

20 Assorted Grease Fittings

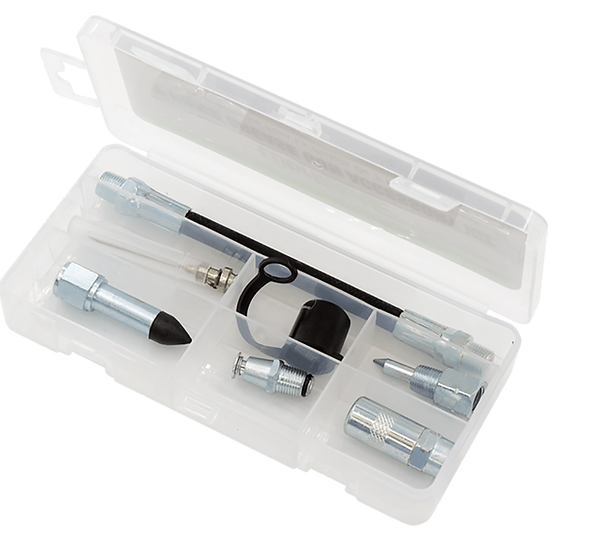

05-060 Reusable box.

Display pack. 6/master

INCLUDES

6" Flex Hose

Seal-Off Dispenser

Grease Gun Coupler

Air Bleeder Valve

Needle Nose Dispenser

Injector Needle

Grease Gun Coupler Cap

7 piece

accessory kit

couplers

Couplers

Quick connect

Locking Coupler

The quick connect coupler easily attaches and disconnects from fittings with one simple motion. The coupler conveniently swivels 360° for access to any fitting location. Solid steel construction allows the coupler to build up to 8,000 PSI and still disconnect with ease. 1/8" NPT.

05-026 Carded. 5/master.

05-031

Standard Grease Gun Coupler. Standard jaw-type coupler feature spring-loaded ball check valve. Fits 1/8" NPT threads. For hand operated lube equipment only. Recommended working pressure is 4,500 PSI. Carded. 10/master

05-031-2

2 Pack. Carded. 10/master.

05-031-6

6 Pack. Carded. 10/master.

05-028

Bulk. 10/box.

Bulk. 100/box.

05-030

05-035

Heavy Duty Grease Gun Coupler. All steel construction for increased pressures. For hand operated grease guns only. Recommended working pressure is 6,000 PSI. Fits 1/8" NPT threads. Carded. 10/master

05-034

Bulk. 10/box.

05-036

Extreme Duty Coupler. Designed for use with air powered equipment as well as hand guns. Heavy duty construction withstands higher pressures. Recommended working pressure is 8,000 PSI. Fits 1/8" NPT threads. Carded. 10/master

05-038

Bulk. 25/box.

05-048

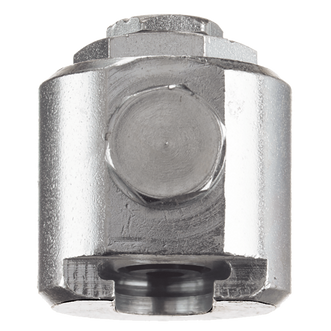

5/8" Button Head Grease Gun Coupler. Specially designed for button head grease fittings. 1/8" NPT female inlet. Zinc-plated steel. For 5/8" button head fittings. Carded. 5/master

05-049

7/8" Button Head Grease Gun Coupler. Specially designed for button head grease fittings. 1/8" NPT female inlet. Zinc-plated steel. For 7/8" button head fittings. Carded. 5/master

05-050

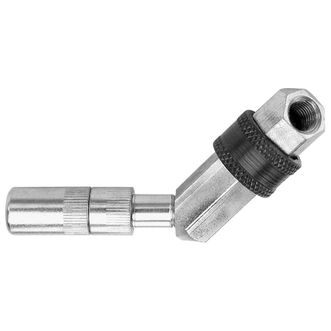

180 Degree Swivel Grease Gun Coupler. Designed to lock at any angle up to 180°. Spring-loaded sleeve locks coupler in place for straight applications or slides back for angular application. Has an 8" overall length and corrosion-resistant finish. For hand operated grease guns only. 1/8" NPT male inlet. Recommended working pressure is 3,000 PSI. Carded. 10/master

05-052

360 Degree Heavy Duty Swivel Coupler. For use with air operated equipment. Swivels in full 360° circle and locks in place. 45° angle gives easy access to most grease fittings. 1/8" NPT female inlet. Recommend working pressure is 6,500 PSI. Carded. 5/master

05-057

360 Degree Swivel Coupler. Swivels in a full 360° circle and locks in place. 45° angle gives easy access to most grease fittings. Comes with standard grease coupler and 1/8" NPT female inlet for extension pipe. For hand operated grease guns only. Recommended working pressure is 4,500 PSI. Carded. 5/master

05-058

Special Access 90 Degree Grease Gun Coupler. Designed for hard-to-reach grease fittings, this 90° coupler with hex head greases fittings in confined spaces. 1/8" NPT female inlet. Recommended working pressure is 1,000 PSI. Carded. 10/master

05-059

90 Degree Grease Gun Coupler with Adapter. For hard-to-reach grease fittings on cars, trucks and other equipment. Ideal for lubrication of front wheel drive vehicles. Complete with both small and large sleeves to fit all standard couplers. For hand operated grease guns only. Recommended working pressure is 4,500 PSI. Carded. 10/master

Needles

05-019

Needle Nose Adapter. Hardened steel tip and 1-1/2" length dispenses a fine line of grease. Ideal for hard-to-reach jobs.. .046" tip diameter and .16" body diameter. For hand operated grease guns only. 1/8" NPT female. Carded. 10/master.

05-021

Push Type Adapter. For hard to reach fittings on cars, trucks, and other equipment. Equipped with a slide on locking sleeve,. it quickly connects to any standard coupler. Simple push engagement with fittings makes for quick use. Carded. 10/master

05-025

4-in Needle Noses Adapter. Perfect for use on trucks, vans and RVs. For converting jaw-type lube couplers to steel needle points. Dispenses fine line of grease. Includes both small and large sleeves to fit all standard couplers. Overall length 7-1/8", tip diameter .046", body diameter .250". For hand operated grease guns only. Carded. 10/master

05-037

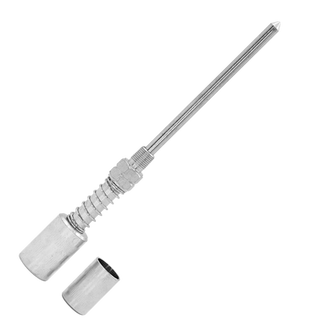

Grease Injector Needle. Lubricates in very tight places such as universal joints and sealed bearings. Tempered steel 18 gauge x 1-1/2" long needle. Equipped with standard grease fitting and protective plastic cover. For hand operated grease guns only. Carded. 10/master

05-041

Seal-Off Dispenser. Use for lubricating cars with grease plugs. Oil and grease resistant rubber tip. 1/8" NPT female inlet. For hand operated grease guns only. Carded. 10/master

05-042

Needle Tip Adapter. For chain saws, universal joints, bicycles, etc. For hand operated grease guns only. Carded. 10/master

05-045

Needle Nose Dispenser. Dispenses a fine line of grease. .55" needle length. .046" tip diameter and .20" body. diameter. For hand operated grease guns only. 1/8" NPT female. Carded. 10/master

10-524

Hoses

Hoses & Pipes

Standard Hoses

10-200

12" Length. For use on hand operated grease guns only. 1/8" NPT male fittings on each end. Recommended working pressure is 4,000 PSI. Carded. 10/master

10-201

18" Length. For use on hand operated grease guns only. 1/8" NPT male fittings on each end. Recommended working pressure is 4,000 PSI. Carded. 10/master

Heavy Duty Hoses

10-212

12" Length. For use on hand operated grease guns only. Steel 1/8" NPT male fittings on each end. Recommended working pressure is 5,000 PSI. Carded. 10/master

10-214

Bulk. 10/box.

10-219

18" Length. For use on hand operated grease guns only. Steel 1/8" NPT male fittings on each end. Recommended working pressure is 5,000 PSI. Carded. 5/master

10-218

Bulk. 10/box.

30-111-07

6" Length. For use on hand operated grease guns only. Steel 1/8" NPT male fittings on each end. Recommended working pressure is 5,000 PSI. Bulk. 200/box

Extreme Duty Hoses

10-512

12" Length. Heavy duty, nylon braided, high quality thermoplastic grease hose with bend restrictor for air operated systems, 1/8" NPT male fittings on each end. Recommended working pressure is 6,000 PSI. Carded. 5/master

10-514

18" Length. Heavy duty, nylon braided, high quality thermoplastic grease hose with bend restrictor for air operated systems, 1/8" NPT male fittings on each end. Recommended working pressure is 6,000 PSI. Carded. 10/master

10-536

36" Length. Heavy duty, nylon braided, high quality thermoplastic grease hose with bend restrictor for air operated systems, 1/8" NPT male fittings on each end. Recommended working pressure is 6,000 PSI. Carded. 12/master

pipes

05-061

5-3/4"Grease Gun Extension Pipe. Standard length pipe with 1/8" pipe thread on each end. 30° angle. Recommend working pressure is 8,000 PSI. Carded. 10/master

Miscellaneous
accessories

05-039

Air Bleeder Valve. Quickly vents air pockets in grease guns. Zinc-plated, easy to use. 1/8" NPT male fitting. Carded. 10/master

05-047

Bulk Loader Fitting. Use in grease gun heads for bulk loading. Zinc-plated. 1/8" NPT male fitting. Carded. 10/master

70-901

Grease Gun Holder. Designed for wall mounting with 2 screws (not included). Center latch locks. Corrosion-resistant finish. Carded. 5/master

70-902

Bulk. 25/box.

70-904

Grease Gun Bracket. High tension spring and durable steel plate hold grease guns securely in place. Corrosion resistant finish. Bulk. 2/box

Bearing Packers

Bearing Packers

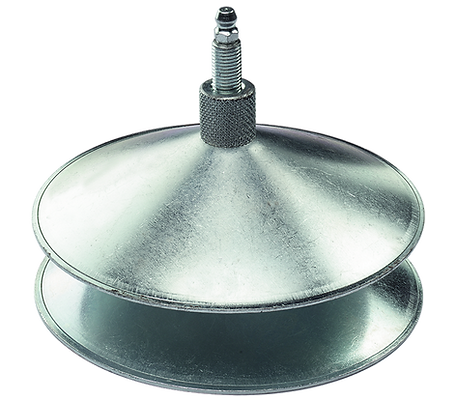

For use with either hand operated or power lube equipment. Threaded center post for positive locking of wheel bearing.

70-025 Steel. 1/2" to

5" OD, 2" height

bearings. Carded.

5/master.

70-026 Plastic. 1/2" to

4-1/4" OD, 2" height

bearings. Carded.

3/master.
